OGO Pro'E30 Intelligent PWM
- Product details
- Sales records
- Product Q&A(28)
- Item No: OGO-Pro'E30 V2.5
- Brand: Ogo
- Item Weight: 0.600 KG
- Product Dimensions: 24 x 13 x 8 CM
What's new?
----ASYNC-COMMON-RAIL function, which first created by OGO team, can run different HHO generators by ONE Pro'E30.
----Better temperature controlling, more reliable.

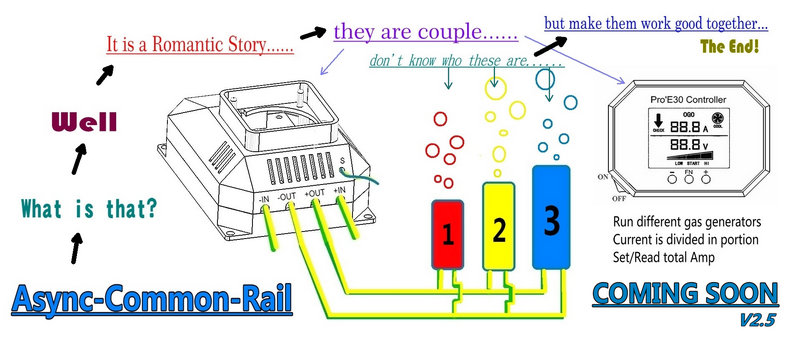

A picture here to help you learn better of this New Function:
Regular functions Description
1, Open setting voltages function making Pro'E30 work sync. with car/truck/boat engine.
2, Visible Fan and Sensor Switch working conditions. Fan starts when Mounter is hot. If concentration too high, the fan starts running fast and the LCD shows OFF.
3, Check Mark shows on when Safety wires got through to negative or chassis. This function can make the HHO system more safe by using together with sensors such as water level sensor, temperature sensor, and pressure sensor.
4, Max amp limited to make the system working more reliable.

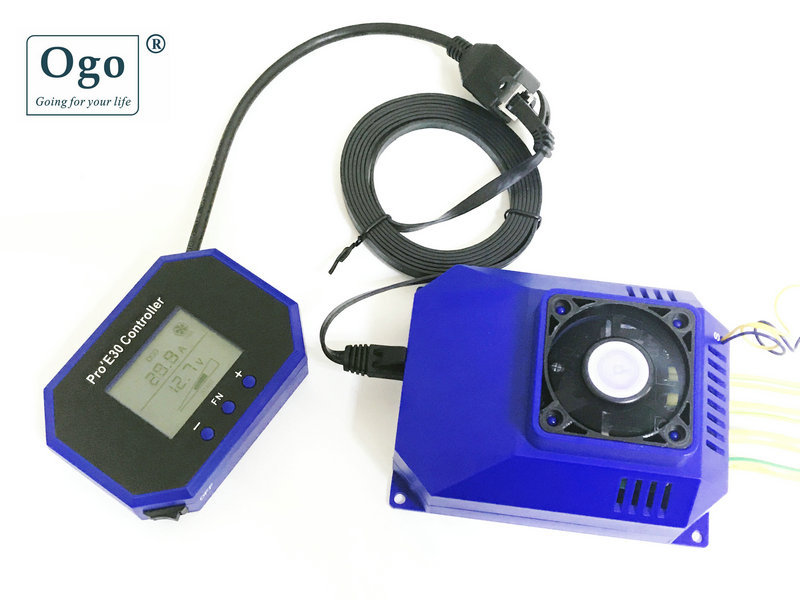

5, Network cable to link the two parts is an easy design for user to install. And it is easy to find another cable if the one not worked.
6, The Controller part is every good looking and the controlling of your HHO system is easier.
7, Less electric parts needed to complete the HHO system. By using Pro'E30, user doesn't need the relay, fuse, extra switch, nor amp meter. The instruction is simple and more reliable.
8, Working at 10V ~36V meets all different purposes of HHO systems. We can also make it for special requests by upgrading the program. If you have any special requests, please feel free to email us.
Related products
Sales records
Buyer | Purchase price | Purchased quantity | Purchase time |
---|---|---|---|
AQ*** | $72.32 | 1 | 19/02/2024 15:42:58 |
da*** | $72.32 | 1 | 23/05/2023 12:00:48 |
Mu*** | $72.32 | 1 | 18/04/2023 00:31:13 |
Hy*** | $72.32 | 2 | 05/11/2022 00:06:14 |
jo*** | $72.32 | 2 | 10/10/2022 18:09:49 |
au*** | $72.32 | 1 | 30/09/2022 04:06:17 |
Ro*** | $72.32 | 5 | 11/08/2022 23:48:14 |
oc*** | $72.32 | 1 | 16/03/2022 06:33:52 |
Hy*** | $68.88 | 5 | 13/01/2022 18:16:28 |
Hy*** | $68.88 | 5 | 09/12/2021 18:58:19 |
Hy*** | $68.88 | 6 | 14/10/2021 21:09:44 |
Di*** | $68.88 | 7 | 05/10/2021 23:24:00 |
Hy*** | $68.88 | 2 | 10/09/2021 17:23:34 |
Hy*** | $68.88 | 3 | 13/07/2021 23:38:18 |
Di*** | $68.88 | 3 | 02/07/2021 19:57:08 |
Sa*** | $68.88 | 1 | 03/06/2021 22:18:47 |
an*** | $68.88 | 1 | 27/05/2021 14:05:47 |
da*** | $68.88 | 1 | 04/05/2021 05:16:36 |
Ky*** | $68.88 | 1 | 31/03/2021 02:08:22 |
As*** | $68.88 | 1 | 09/03/2021 06:22:27 |
Product Q&A
If you have any problem, please click here!
Ask a question-
Anonymous27/09/2017 21:52:22
- Can you adjust the Hz? What is the max Hz and Amps? 12v or 24v?
-
Anonymous30/09/2017 16:52:42
- When can I buy one of this? Because it’s sold out.
-
Reply
-
Administrator06/10/2017 14:17:56
Now all the stocks are supplied to distributors. It will be available latter on www.ogohho.com
-
-
le***01/10/2017 01:20:10
- When can I buy this? Because it’s sold out!
-
Reply
-
Administrator06/10/2017 14:19:06
It is supplying to distributors for bulk orders. Retailing will be started soon.
-
-
Anonymous04/11/2017 19:05:44
- 1. What fixed frequency is used? 2. Does the on/off switch on the controller switch the cell power on/off? 3. Does this device connect between the + battery source and the cell with adequate 10 awg 30 amp wire or connect between the cell and ground to control the amperage flow to the cell. 4. Is it designed to have the controller with LCD screen installed inside the cab and the "mounter" installed in the engine compartment? 5. How long is the cable between the controller and the "mounter"? 5. Can the device automatically power the HHO cell (on/off) by sensing that the engine is running? If so, what is the device sensing to know that the engine is running? thanks
-
Reply
-
Administrator06/11/2017 15:03:48
Replied by email. Pls check it.
-
-
Anonymous14/11/2017 04:35:28
- Why you don’t need relay using this new pwm ?, what turn it off and on?
-
Reply
-
Administrator14/11/2017 14:20:49
There is a manual switch made in the controller. You can switch the HHO system off/on by using this switch. You don't need extra relay.
-
-
vi***18/11/2017 08:34:46
- I wonder how to keep the lcd backlight on.
-
Reply
-
Administrator18/11/2017 14:19:08
The LCD backlight on for 1 minute. If there is no setting, the backlight off to save power.
-
-
Anonymous23/01/2018 11:12:44
- What is the operating temperature range of the Mounter and the Controller, thank you
-
Reply
-
Administrator23/01/2018 15:25:17
upto 95℃ theoretically.
-
-
Anonymous20/02/2018 03:13:23
- 1. What fixed frequency is used? 2. Does the on/off switch on the controller switch the cell power on/off? 3. Does this device connect between the + battery source and the cell with adequate 10 awg 30 amp wire or connect between the cell and ground to control the amperage flow to the cell, a picture of the power terminals would be nice. 4. Is it designed to have the controller with LCD screen installed inside the cab and the "mounter" installed in the engine compartment? 5. How long is the cable between the controller and the "mounter"? 6. Can the device automatically power the HHO cell (on/off) by sensing that the engine is running? 7.If so, what is the device sensing to know that the engine is running? 8. My other PWM creates a buzzing sound in my electrical system one it ran at high Hz square wave settings, does this unit create those sounds, or doe sit have have any power line filters
-
Reply
-
Administrator22/02/2018 15:15:28
1. What fixed frequency is used? --High frequency more than 10KHZ. Sorry we could not give you details. -- 2. Does the on/off switch on the controller switch the cell power on/off? --Yes.-- 3. Does this device connect between the + battery source and the cell with adequate 10 awg 30 amp wire or connect between the cell and ground to control the amperage flow to the cell, a picture of the power terminals would be nice. --Pro'E PWM controlling the negative battery to cell. -- 4. Is it designed to have the controller with LCD screen installed inside the cab and the "mounter" installed in the engine compartment? --Yes as you like. You can also fix both of them under the hood. -- 5. How long is the cable between the controller and the "mounter"? --2 Meter-- 6. Can the device automatically power the HHO cell (on/off) by sensing that the engine is running? --Yes. It is an intelligent PWM.-- 7.If so, what is the device sensing to know that the engine is running? --Some technical sensor-- 8. My other PWM creates a buzzing sound in my electrical system one it ran at high Hz square wave settings, does this unit create those sounds, or doe sit have have any power line filters ---We are not sure if it will create such a same sound or not because we don't know what is your HHO generator and your other parts of your system.
-
-
Anonymous16/10/2018 23:12:19
- What do the 2 little wires controll and which is which? I.e. Blue = ? Yellow = ? If I set it to 14 amps will it not exceed that amount even though my cell wants to draw say 20 amps (so it acts like a constant current pwm)? What will happen if it does draw more than programmed amps?
-
Reply
-
Administrator17/10/2018 14:44:43
Dear, Thanks for your questions. Pls email to our after-sell dept. Our mechanics and engineers can give you professional reply with photos. support@ogohho.com
-
-
Anonymous11/01/2019 22:25:52
- how should I connect OGO-SSL1 to OGO-Pro'E30?
-
Reply
-
Administrator12/01/2019 14:58:00
You can use the water level switch in your HHO system as you like. If you don't want it, you can just leave it alone.
-
-
Anonymous09/02/2019 07:47:34
- Can it handle 36 amps?
-
Reply
-
Administrator12/02/2019 15:13:34
It is max handling 30A
-
-
Anonymous25/02/2019 10:05:21
- cách lắp đăt như thế nào
-
Reply
-
Administrator25/02/2019 13:46:30
We have manual book sent with our goods. Pls read the manual book carefully before installation.
-
-
Anonymous27/03/2019 23:58:30
- 1) can I buy this PRO E'30 from you together from you, with compatibles sensors such as water level sensor, temperature sensor, and pressure sensor? If you do not have one can you recommend some compatible sensors? 2) how work this PRO E'30 with pressure sensor? only can be programmed on/off positions? 3) can you prepare for me Pro E30 to increase Amperage, in linear function with pressure sensor, when vacuum in intake collector rise up?
-
Reply
-
Administrator28/03/2019 14:19:56
1) We only produce water level sensor switch. We don't produce other sensor switch. We don't recommend other items which not made in OGO factory. 2) Yes, only ON/OFF. 3) We can create the controller as you need. Pls email your detail needs to our sales dept. sales@ogohho.com
-
-
Ki***17/04/2019 05:04:41
- podría enviarme el manual de instalación y uso del PWM Porfavor. Pues he comprado el kit completo y no puedo instalarlo porque esta en ingles, si usted me lo manda digital podre traducirlo con mas facilidad. Gracias
-
Reply
-
Administrator17/04/2019 14:25:19
Pls email your order number and your requests to our after-sell dept. (support@ogohho.com)
-
-
Anonymous22/06/2019 03:24:28
- Estimado, el mecanico ha instalado todo, pero no logramos hacer que el PWM Pro'E0 encienda, pues aparece en OFF y no logramos hacer que cambie a ON. Todas las conecciones estan ok, ademas me indica el CHECK en todo Momento, que puedo hacer?
-
Reply
-
Administrator22/06/2019 16:36:01
Pls check the float of water level sensor switch
-
-
Anonymous25/08/2019 03:13:22
- My pro e30 isn’t sending power to my dry cell. Everything else looks good. What would be the problem?
-
Reply
-
Administrator26/08/2019 11:42:14
Pls take some photos of your installation in car to our mechanics: support@ogohho.com
-
-
Anonymous02/11/2019 22:14:16
- Hi, I am interested in this product. I would like to have the installation instructions. I already have a very basic HHO system but I would like to order my cell by a PWM system with remote report for the settings. Thank you for your reply.
-
Reply
-
Administrator04/11/2019 16:50:28
Dear, Thank you for your interests in OGOHHO products. We only send manual books together with our products.
-
-
Anonymous12/01/2020 00:47:34
- greetings and hello hope your lunar break is going well i bought or paid for 10 of these back on dec 14 you said your workers just left for the hollidays. these ccpwms seem to work but where i am we use 28 percent koh to keep water from freezing it gets to -50 here can you make it so that the ccpwm does not see strong koh? i can controll the low water with a low water cut off but the ccpwm has to work with strong koh. thank you take great care
-
Reply
-
Administrator13/01/2020 14:01:56
Sorry, have to keep you waiting until our new production got ready. New Pro'E30 will be upgraded and will be more strong for high concentration.
-
-
Anonymous18/05/2020 21:12:07
- what are the precise dimensions of 2 PWM30A modules? thank you
-
Reply
-
Administrator19/05/2020 15:38:11
The dimensions of Controller part is 96*70*23mm. The dimensions of the Mount part is 118*100*57mm
-
-
Anonymous18/05/2020 21:16:09
- what are the precise dimensions of 2 PWM30A modules? thank you
-
Reply
-
Administrator19/05/2020 15:38:02
The dimensions of Controller part is 96*70*23mm. The dimensions of the Mount part is 118*100*57mm
-
-
Anonymous26/08/2020 20:14:21
- Will the controller work on a 2000 jeep grand cherokee 4.7 v8
-
Reply
-
Administrator28/08/2020 14:13:51
This Pro'E30 is an HHO system controller. It controls the HHO system. The power supply from Jeep is meeting this controller well.
-
-
He***26/11/2020 07:05:39
- Sir/Lady, Can this device work with wet cell or just dry?
-
Reply
-
Administrator26/11/2020 14:31:51
It can work with wetcell and drycell both, can work with them at the same time too.
-
-
su***12/05/2022 16:04:20
- does this have warranty?
-
Reply
-
Administrator12/05/2022 17:28:22
Yes.
-
-
su***12/05/2022 22:16:38
- how long is the warranty?
-
Reply
-
Administrator14/05/2022 16:00:35
6 month for sample orders. if order is bulk, we can extend it to 1 year.
-
-
Anonymous16/02/2023 23:16:32
- hi, nice to meet you. What is the shipping price for Chile and Venezuela? thank you.
-
Reply
-
Administrator17/02/2023 17:37:42
The shipping costs will be shown after you added items in cart and checkout. There are different forwarders offering different shipping costs.
-
-
Anonymous21/04/2023 05:14:13
- Hi, Do you sale long cable for OGO Pro 30 PWM ? I do need 3 or 4 more feet ... Please let me know Thank you George
-
Reply
-
Administrator21/04/2023 13:54:14
Yes, we can make it for you. Pls email us your needs to sales@ogohho.com
-
-
Anonymous14/11/2023 13:51:52
- Hi, Is the current control of OGO PRO E'30 linear or is it ON-OFF?
-
Reply
-
Administrator14/11/2023 14:14:30
I don't understand what linear you mean but our controller is not ON-OFF type
-
-
Anonymous15/11/2023 00:48:56
- Hi, to the question if it is linear, I mean that if there is an increase in temperature or a lot of current pressure is detected, OGO-Pro'E30 varies the current waiting for the temperature to decrease or cuts it off waiting for the temperature to decrease to activate it again When the temperature reaches what is required?
-
Reply
-
Administrator17/11/2023 17:09:13
I think the linear is that amp increasing when temperature going up. For normal PWMs, the setting is dutycycle. For example, you can only set a 60% dutycycle on PWM, the amp meter showing 15amp. But when the temperature going up, the amp can be 20A although the durycycle is the same 60%. Pro'E30 is different. The setting on Pro'E30 is the amp directly. If you set a 15A on Pro'E30, the outputting current will not over 15A, no mater temperature changed or not.
-
The frequency of Pro'E30 is fixed. It is not adjustable. If you need frequency adjusting, please refer to the Pro'X-Luxury PWM. Here is the link: http://www.ogohho.com/goods/detail.do?gid=53
