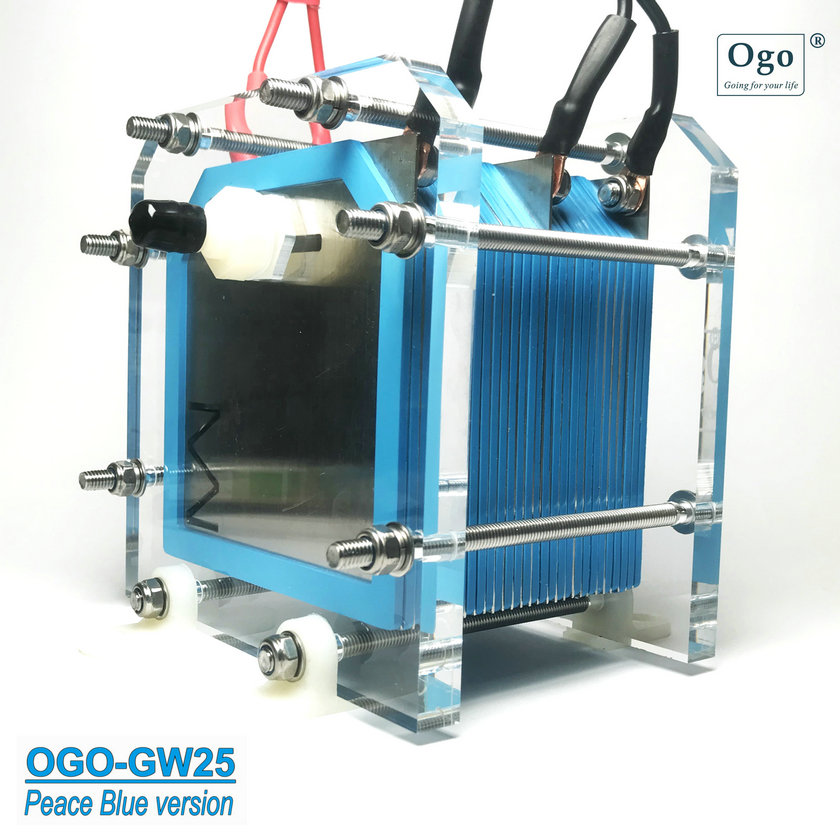

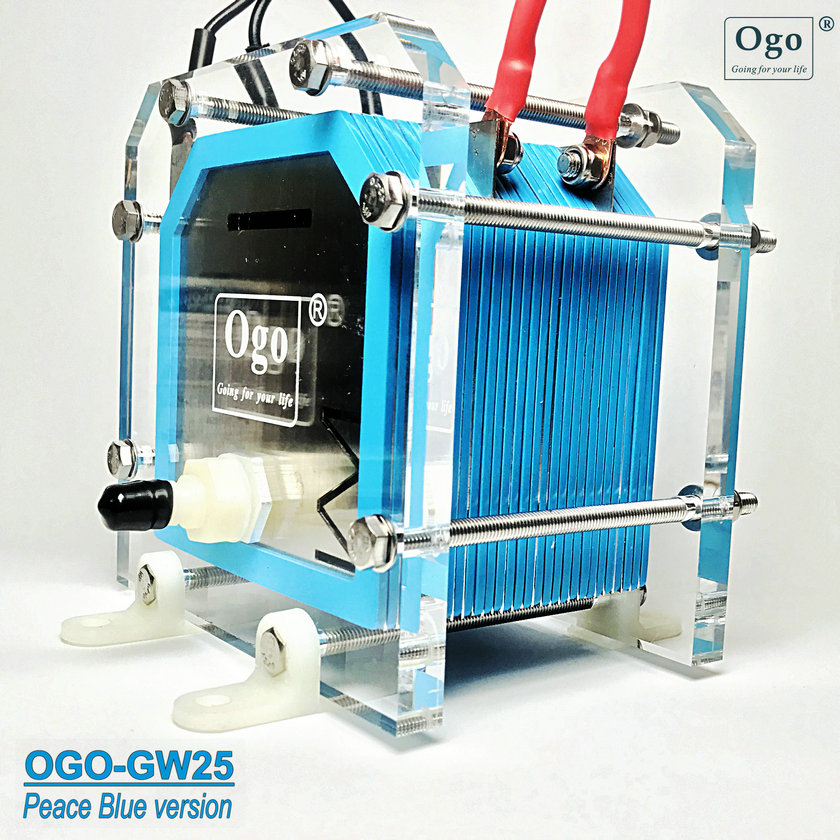

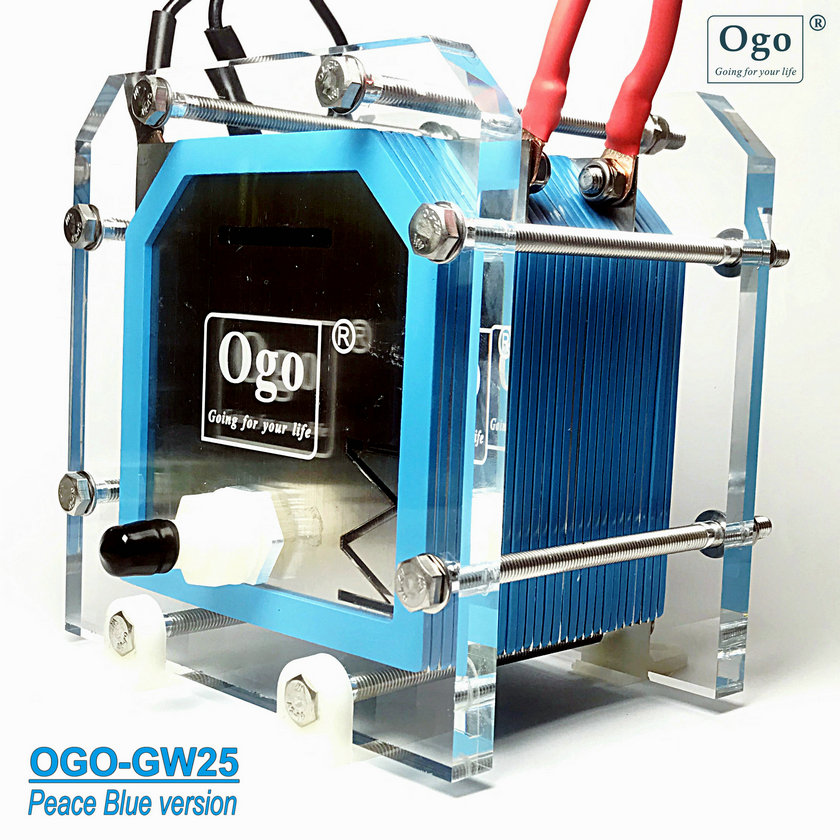

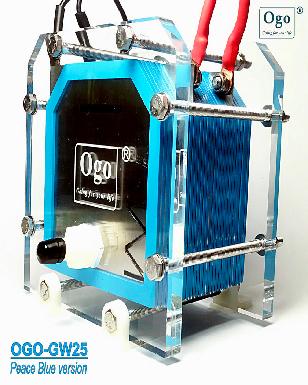

OGO HHO 25plates HHO Cell efficiency Peace Blue
- Product details
- Sales records
- Product Q&A(23)
- Item No: OGO-GW25(ZOROW) Peace Blue
- Brand: Ogo
- Item Weight: 3.500 KG
- Product Dimensions: 20 x 20 x 20 CM
New !! Material: Newly developed material--EPDM, which is a sealing material widely used in automobiles.
This material has good sealing properties, can be reused, is not easy to harden, and is durable.
Color: Peace Blue. Under the premise of not affecting the material properties, we innovatively add new material formulas to make the new gasket in line with our product concept - high quality and peace messenger.
NEW Designed stainless steel plates with new connection

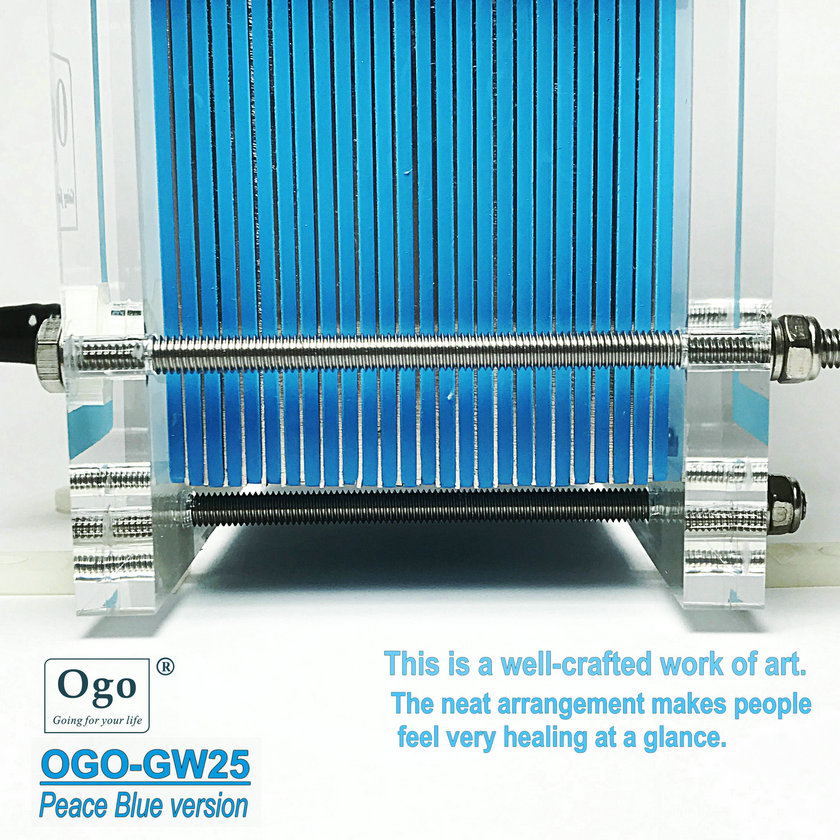

NEW arrangement of working plates.
NEW created gaskets made of Peace Blue EPDM material, working life is longer.
MORE stable working.
LESS AMP consuming.
LESS heat producing.
BETTER HHO gas production and much smoother.
LESS reversed pulse to PWM or battery/alternator,
LESS issues of PWM/controller/battery/alternator
Description
(1) 25 Plates of 316L Stainless Steel Plates
(2) NEW EPDM Peace Blue Gaskets
(3) Demensions: 14.2*14.2*15.5 cm
(4) High temperature Cast Acrylic end Plates
(5) 2 OGO-MF2042 pre-installed.
(6) Our Dry Cell is expandable.
(7) Production: 1LPM to 6LPM.
(8) Working at 12v to 36v, 10amp to 80amp.
(9) Net Weight: 2.85kg. G.Weight: 3.5kg
(10) Package: 20x20x20cm
Related products
Sales records
| Buyer | Purchase price | Purchased quantity | Purchase time |
|---|---|---|---|
| LH*** | $140.82 | 1 | 10/03/2024 20:33:11 |
| AQ*** | $140.82 | 2 | 19/02/2024 15:42:58 |
| HH*** | $139.52 | 4 | 15/09/2022 22:28:25 |
| Ol*** | $139.52 | 1 | 25/08/2022 11:30:13 |
| sh*** | $139.52 | 3 | 05/07/2022 00:54:10 |
| sc*** | $132.88 | 3 | 05/11/2021 06:58:49 |
| Wa*** | $132.88 | 1 | 17/08/2021 03:49:15 |
| ha*** | $132.88 | 1 | 30/07/2021 05:08:06 |
| Uc*** | $132.88 | 1 | 08/06/2021 16:33:17 |
| Ky*** | $132.88 | 2 | 31/03/2021 02:08:22 |
| so*** | $132.88 | 1 | 28/12/2020 12:40:00 |
| EN*** | $132.88 | 1 | 23/12/2020 09:20:33 |
| Vi*** | $132.88 | 2 | 16/10/2020 03:44:40 |
| FO*** | $112.75 | 10 | 05/10/2020 22:33:12 |
| Sa*** | $132.88 | 2 | 22/07/2020 05:10:53 |
| jr*** | $132.88 | 3 | 15/07/2020 23:43:31 |
| Me*** | $132.88 | 1 | 12/02/2020 22:42:22 |
| Do*** | $132.88 | 1 | 19/01/2020 20:23:53 |
| Au*** | $132.88 | 1 | 05/01/2020 20:29:56 |
| da*** | $132.88 | 1 | 19/10/2019 18:12:40 |
Product Q&A
If you have any problem, please click here!
Ask a question-
Anonymous09/12/2016 23:18:21
- Hello, OGO team, I have this unit along with your Pro'X Luxury Gold CCPWM, on a 12 volt circuit and it is working great, however I would now like to switch it over to 24 volts, could you please advise if I can switch it over to 24 volts without any issues many thanks
-
et***21/06/2017 23:30:52
- Hi OGO, What does it mean 2 units OGO MF2042 pre-installed in item 5 of your Description? Thanks
-
Reply
-
Administrator22/06/2017 14:34:27
There are 2 fittings in white color in the picture. Those are the MF2042. These 2 fittings are installed in drycell when it was producing. Buyers don't need to install the fittings.
-
-
et***23/06/2017 19:25:55
- Thanks for the reply. So what size are these fittings and what hose sizes are the barbs, please?
-
Reply
-
Administrator24/06/2017 14:50:06
3/8"
-
-
Anonymous12/09/2017 23:06:06
- electrolyte
-
Reply
-
Administrator13/09/2017 14:25:28
If you have any question, pls feel free to email us. sales@ogohho.com
-
-
Anonymous24/11/2017 17:56:08
- Hi... How much cost of shipping to Malaysia and how long it's take. I like to buy pwm and map controller ...?
-
Reply
-
Administrator25/11/2017 14:38:23
Shipping to Malaysia by express takes about 5~7 days. The shipping costs from different carriers offering different. You can add the items you want to buy in cart and checkout. After you filled your delivery address, there will be shipping costs.
-
-
Anonymous24/11/2017 17:59:43
- Hi... How much the cost for shipment to Malaysia and how long it take.... ?I interested buying a pwm and map controller... TQ..
-
Reply
-
Administrator25/11/2017 14:38:34
Shipping to Malaysia by express takes about 5~7 days. The shipping costs from different carriers offering different. You can add the items you want to buy in cart and checkout. After you filled your delivery address, there will be shipping costs.
-
-
Anonymous17/08/2018 03:45:03
- This new ogo hho 25 plates up to 3000cc engine working 100% or not? But delivery to india how days will take this item?
-
Reply
-
Administrator17/08/2018 13:37:03
HHO technical could not 100% take the place of fuels as the whole car is made for Oil Fuels. We can delivery to India. The shipping time is related to your order qty and shipping method. If order is not bulk and shipping by express, shipping time is about 7 days.
-
-
Anonymous27/08/2018 02:08:10
- can I use NEW OGO HHO Generator 25 plates in my car Chevrolet Captiva 3200 CC or Lexus RX350 3500 CC working 100% or not? Should I by 2 pieces of this item in 2 pieces working 100% or not?
-
Reply
-
Administrator27/08/2018 13:51:27
You can use the drycell in either of your car. HHO technical could not 100% take the place of fuels in combustion engine now.
-
-
Anonymous19/12/2018 16:52:30
- For this hho generator, do i need a PVM? How much cost , also Shipping, to Athens Greece how much. Thank you.
-
Reply
-
Administrator20/12/2018 14:29:20
Yes we recommend a PWM to control the Generator better. Shipping cost will be shown after you add items in cart and checkout.
-
-
Anonymous20/09/2019 10:01:45
- What size hho generator suitable for 1.8 vehicle
-
Reply
-
Administrator20/09/2019 14:09:50
Yes it is good for 1.8L engine.
-
-
FO***28/09/2020 17:47:37
- Ou puis je trouver les branchement sur la cellule 25 plaques pour l'utiliser en 12V ou 24v
-
Reply
-
Administrator29/09/2020 13:51:32
The cables connections are the same in 12V and 24V cells.
-
-
Anonymous18/03/2021 06:10:30
- Hello Can you tell me please what is the correct work temperature in this cell?
-
Reply
-
Administrator18/03/2021 14:30:29
It works during -15℃~90℃. We recommend to run it at 10℃~65℃
-
-
Anonymous18/03/2021 06:11:11
- Can you tell me please what is the correct work temperature in this cell?
-
Reply
-
Administrator18/03/2021 14:30:39
It works during -15℃~90℃. We recommend to run it at 10℃~65℃
-
-
Anonymous25/05/2021 01:33:31
- Hello Ogo! Can the hydrogen produced by the generator be used to power another fuel cell (in a reverse order, to produce electricity, for proof of concept progect)?
-
Reply
-
Administrator25/05/2021 11:21:09
Fuel Cell concept is available for sure. There are already some fuelcell cars. But this is an HHO generator, not hydrogen generator. Its production is HHO gas.
-
-
Anonymous11/05/2022 10:50:40
- 1) What is the dimensions of the stainless steel plates? 2) How many plates unit you recommend for Jeep Wrangler 3.8L V6 engine? 3) In general your dimensions are confusing a little when you use next to the numbers the (*). Do you mean inches (")? Thanks
-
Reply
-
Administrator12/05/2022 17:26:25
The plate dimension is 11CM(L)X11CM(W). For your car, if you only want to buy the HHO gas generator, you can but the DC66625 http://www.ogohho.com/goods/detail.do?gid=16
-
-
RW***03/06/2022 10:51:03
- Good day, is the 25 plates OGO HHO is suitable to my diesel engine 4d56 2.5 liters engine? and what is the right amperage for this engine with 12volts supply and PWM?
-
Reply
-
Administrator03/06/2022 15:34:47
Yes GW25 is good to engine 4D56 2.5L. The recommended amp is 15A~25A. If you need complete system, pls email your car information to sales@ogohho.com
-
-
Anonymous30/06/2022 08:44:50
- I have Toyota sequoia with a 4.7l v8. Would this unit be good to produce enough?
-
Reply
-
Administrator30/06/2022 14:34:36
We recommend a larger one DC66625 which is better meeting the engine needs. http://www.ogohho.com/goods/detail.do?gid=16
-
-
Anonymous11/05/2023 11:00:30
- What is the substance that causes the electrolyte to become brown when a less pure electrolyte is used?
-
Reply
-
Administrator11/05/2023 15:26:34
We recommend using high-purity electrolytes. In general, the substances that will change the color of the electrolyte are mainly carbon and carbon-containing compounds. In the case of electrolysis, the conductive particles will reduce the carbon in the carbon compound to form carbon substances or carbon compounds. In this way, the electrolyte will turn brown.
-
-
Anonymous12/05/2023 07:56:11
- What would be the effect if some of the electrodes were rusted? Is it safe to use that electrode?
-
Reply
-
Administrator12/05/2023 15:56:33
If you follow our instructions, the electrode plates will not corrode. If the electrode plates are corroded, the device may short circuit, the Controller will be burned, and the HHO system will not work.
-
-
Ke***28/05/2023 16:54:48
- Would this be my best option if installing into a prius? Would i need PWM? Do u need a bubbler to catch the steam?
-
Reply
-
Administrator29/05/2023 14:11:43
This is an HHO GAS Generator only. If you want to buy complete HHO system, you need other parts to complete it.
-
-
Anonymous05/10/2023 01:13:16
- What is maximum power consumption an delivery time to colombia ?
-
Reply
-
Administrator05/10/2023 14:06:36
The working power of GW25 is about 120W~400W at 12V car battery. The delivery time to Colombia is related to the shipping metheod. If only sample, we send it via express and the shipping time will be about 7 days.
-
-
Aj***09/02/2024 04:13:57
- Hello, I have a Toyota Corolla 1.8L engine, and I have two OGO HHO 13 plates I want to install both of them on my Toyota Corolla., Can I install both of them in parallel on the same car? If yes what should be the amp that I can run the car for not damaging the engine? Thank you.
-
Reply
-
Administrator18/02/2024 12:32:50
Yes you can install the both on your car.
-
-
Anonymous22/04/2024 00:38:47
- I have the 25 plate dry cell. I bought a 4000 watt power source that can handle Up to 80 amps. Theoretically how many lpm can I get running it at 60 amps? Best Regards, David M.
-
Reply
-
Administrator22/04/2024 14:13:43
Pls email us your power source to support@ogohho.com Our mechanic will give you some professional technical supports.
-
Pls hold the amp less than 15A if run it at 24V truck. Too high amp will over heating.
