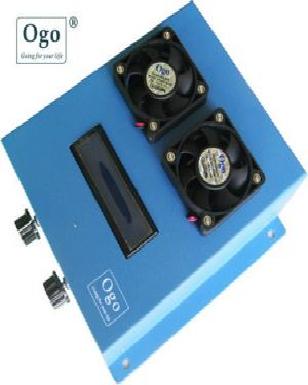

Intelligent PWM for HHO system specialized

  • Price: $100.80
  • Item No:OGO-Pro'X
  • Brand: Ogo
  • Product unit: 1   piece

Brief introduction: Intelligent Pulse Width modulation controlling directly by amp. Memory your HHO system, protect your power supplier, Various Freq.adjustable, working perfect in BOTH 12V and 24V. Max output 100A(We limited to be 75A output)

For 20 pieces only $85.00
  piece
Minimum quantity : 1.00 piece
  • Product details
  • Sales records
  • Product Q&A(8)
  • Item No: OGO-Pro'X
  • Brand: Ogo
  • Item Weight: 1.150 KG
  • Product Dimensions: 20 x 16 x 8 CM

Smart Pulse Width Modulator!!

(1) Changing Amps directly, not changing the duty cycle.

(2) Fix a value of output current and Pro'X will make your cell working at this value or lower. Don't need to worry about over drawing power from battery and alternator. It protects your batter y and alternator in an other worlds.

(3) Pro'X can work in both 12V and 24V by a small easy switch inside the case. Don't need to change the cooling fans.

(4) Max Output 75AMPs, 30KHz

(5) Different Frequency ranges selecting for more different purpose operations.

(6) Auto Save.

The Frequency and Duty Cycle can be auto saved. When the data achieves your need, stop tuning for 1 second. The data can be auto saved.

(7) Memory

After the Duty Cycle and the Frequency was saved, Pro'X runs at this recorded data next time when it is powered on.

(8) Safety wires for different type of sensor switches.

(9) Dual in Dual out wires, easy connection.

(10) Size is a little big: 19.5x16.1x7.5cm

(11) Net Weight: 0.95kg



--Inquiry from OGO Member: Hello, what is the difference between this Transformor and the Intelligent PWM? Thank you

--Reply from OGO:

1, PWM70 is a normal PWM. It has not detecting car working situation.

2, OGO-Pro'X is a intelligent PWM. It only works when the vehicle run. It doesn't output amp if the voltage is low, it can help protecting the battery and alternator.

3, OGO-Pro'X is directly controlling by amp. You can set a current in Pro'X and it only output this current maximum. For example, you set a 20A. Pro'X will max output 20A. You don't need to worry over heating the HHO system.

4, PWM70 is for 12V only. Pro'X can work with 12V and 24V.

5, Pro'X max continous output is 100A. We presetted it at 75A to protect the materials inside. Next batch will release the amp to be 100A.

6, Pro'X has a special connection. You can connect it to water level sensor or temperature sensor or other ground type sensors. If it is ground, Pro'X will stop output current. You can also connect it to a ground switch. If you want to turn off the system, just need to ground the small cable.

7, Pro'X is specially designed for HHO system in vehicle. It can work as a CCPWM but it is better than CCPWM. CCPWM waste a lot of current to make the current constant. Pro'X is rectifying by the special chipsets and CPUs inside to try its best to make the output current stable. CCPWM will draw down battery and alternator too. Pro'X has Freq. adjustable function to help you find more interests of HHO production.

Regards,

Related products

HHO System Dynamic Chip OGO-HC12 HHO Enhancer
HHO System Dynamic Chip OGO-HC12 HHO Enhancer

$52.49

add to cart

Fuel Saver Dynamic Chip OGO-HC12 Fuel Saver
Fuel Saver Dynamic Chip OGO-HC12 Fuel Saver

$52.49

add to cart

3.0L HHO Water Reservoir(with OGO-C8 cap)
3.0L HHO Water Reservoir(with OGO-C8 cap)

$23.63

add to cart

10pcs High quality Neoprene Ruber Gasket of OGO Dry Cell
10pcs High quality Neoprene Ruber Gasket of OGO Dry Cel...

$8.00

add to cart

NEW Fittings!! 11 Plates 316L OGO HHO Dry Cell
NEW Fittings!! 11 Plates 316L OGO HHO Dry Cell

$70.25

add to cart

Super HHO Cell OGO-DC66613(Revolutionary)
Super HHO Cell OGO-DC66613(Revolutionary)

$156.03

add to cart

Super HHO Cell OGO-DC66625(Astronaut)
Super HHO Cell OGO-DC66625(Astronaut)

$253.28

add to cart

OGO HHO Car Fuse 60A (OGO-F60A)
OGO HHO Car Fuse 60A (OGO-F60A)

$7.35

add to cart

OGO HHO Fuse for Car 100A (OGO-F100A)
OGO HHO Fuse for Car 100A (OGO-F100A)

$8.40

add to cart

LCD Display OGO AMP Meter with Shunt 100A
LCD Display OGO AMP Meter with Shunt 100A

$15.75

add to cart

OGO Branded High quality NPT Elbow 1/4x3/8
OGO Branded High quality NPT Elbow 1/4x3/8

$0.50

add to cart

OGO HHO Gas Dryer
OGO HHO Gas Dryer

$10.50

add to cart

OGOHHO dry cell for big 24V trucks
OGOHHO dry cell for big 24V trucks

$488.09

add to cart

Big OGOHHO cell for 24V trucks
Big OGOHHO cell for 24V trucks

$705.47

add to cart

LCD display OGO HHO AM Meter with Shunt 50A
LCD display OGO HHO AM Meter with Shunt 50A

$12.60

add to cart

Car Fuse 30A (OGO-F30A)
Car Fuse 30A (OGO-F30A)

$6.83

add to cart

High Performance Dynamic Chip
High Performance Dynamic Chip

$52.49

add to cart

Digital Electronic Fuel Injection Enhancer V041
Digital Electronic Fuel Injection Enhancer V041

$60.00

add to cart

Dual Mode MAP/MAF Sensor Enhancer for HHO
Dual Mode MAP/MAF Sensor Enhancer for HHO

$16.80

add to cart

1.2L HHO Water Reservoir/Bubbler Tank
1.2L HHO Water Reservoir/Bubbler Tank

$15.75

add to cart

12V HHO PWM 70A!! OGO-PWM70 (Transformor)
12V HHO PWM 70A!! OGO-PWM70 (Transformor)

$65.00

add to cart

21 Plates 316L Supper HHO Dry Cell
21 Plates 316L Supper HHO Dry Cell

$117.68

add to cart

HHO PWM 30A (OGO-PWM) Kits
HHO PWM 30A (OGO-PWM) Kits

$20.99

add to cart

Pro'X Luxury Gold V4.1 PWM Current Controller
Pro'X Luxury Gold V4.1 PWM Current Controller

$105.84

add to cart

Sales records

Buyer Purchase price Purchased quantity Purchase time
ka*** $100.80 1 18/01/2014 01:10:53
ja*** $100.80 1 17/01/2014 16:41:05
ya*** $100.80 1 05/09/2013 11:30:15

Product Q&A

If you have any problem, please click here!

Ask a question
Anonymous
13/10/2013 23:30:13
Hi, my Toyota Solara is using a 160amps alternator. Does it effects or damage the ProX unit? Does the ProX gets hot when running at high amps as 50A or 70A? Thanks, brian
Reply
Administrator
14/10/2013 15:49:23

Hello Brian, the amp marked 50A, 70A, or 100A is Max output of our PWM or Pro'X. Many Alternators can produce 100A or more. It doesn't matter. Pro'X is specially designed and max output can be 100A. The output amp is related to the load (Cell in HHO system). If your cell is very small and density of electrolytes is not high, you may only need a few amps, even your alternator is producing 160A. The Heat related to the power. Power=Voltage * Amp. If you give more power to the cell, and your cell is not in good designed, it will get hot very soon. Regards, Charly

Anonymous
04/11/2013 16:26:08
Do you have an estaimated time for the Pro x pwm to be in stock? I wish to buy two of them.
Reply
Administrator
04/11/2013 18:07:11

We are very sorry for the delay production of Pro'X. There are some new changes of the new version and we need time to do more tests. we finished all the tests last weekend and we are mass producing this model now. We planing to launch the new version on Nov. 15, 2013. Thanks for your attention.

Anonymous
26/08/2014 12:27:38
How soon can I re-sell this stuff?
Reply
Administrator
26/08/2014 15:22:11

PWM70 is stopped production. We are upgrading this production line. OGO-Pro'X is upgraded to OGO-Pro'X Luxury. It is available. http://www.ogohho.com/goods/detail.do?gid=53

Anonymous
03/11/2014 13:21:10
Have pro x luxury, imput voltage constant 13.5 volts , my amps and voltage on display continues to vary amps from 3 to 16 voltage from 10.5 to 14 have set advanced setting to 14 so it will work, is this variance normal
Reply
Administrator
03/11/2014 22:56:51

Pro'X Luxury is showing the working condition of your cell. If the working current is not stable and changing variously, it is telling you that your cell is working smoothly. If your cell is wet cell, the working current is normally various. It is no problem if there is not cause an OFF.

Anonymous
18/02/2015 16:55:58
bonjour, quand es-ce que ce produit sera disponible ? merci. hello, when did that this product will be available? thank you.
Reply
Administrator
19/02/2015 09:46:00

Pro'X Blue version is stopped production for 1 year already. We have a new item taking the place. http://www.ogohho.com/goods/detail.do?gid=53 Pro'X Luxury is an upgraded model of the blue version. It is working better, and better for controlling.

Anonymous
12/07/2017 01:22:36
Hi Do any of your PWM units have reverse polarity protection? I am looking for a sturdy unit for a carbon clean system so there is a risk that an operator could sometimes connect it up to the wrong battery terminal . Ideally 70 or more amp rating, 12V (and 24V too although this is not essential) High efficiency Robust
Reply
Administrator
12/07/2017 14:29:36

This blue version PWM already stopped production. Pls refer to the OGO-Pro'X Luxury. http://www.ogohho.com/goods/detail.do?gid=53 PWM is not a carbon cleaning machine itself. It is a controller only. Pls double check if it is the one you are looking for or not.

Anonymous
01/09/2017 13:52:00
What is the maximum CONTINUOUS amperage output?
Reply
Administrator
01/09/2017 14:12:17

This blue version of PRO'X had been stopped production for more than 2 years. We have a new item instead of this version: http://www.ogohho.com/goods/detail.do?gid=53 This Pro'X Luxury PWM max output 99A.

Anonymous
26/11/2019 08:22:17
Funciona a 24 volt
Reply
Administrator
27/11/2019 14:01:25

This model is upgraded. The new model is Pro'X Luxury. http://www.ogohho.com/goods/detail.do?gid=53
